Fuel Line Routing - MG TC
aticle from the Frame Up, LLC

The following photos are in sequence to show the TC fuel line routing from the tank to the pump.

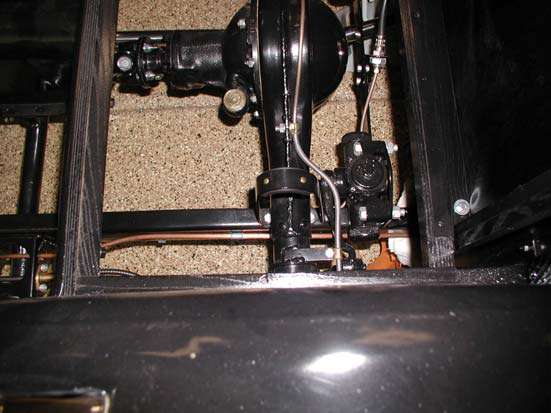

1- Fuel line passes under rear cross member

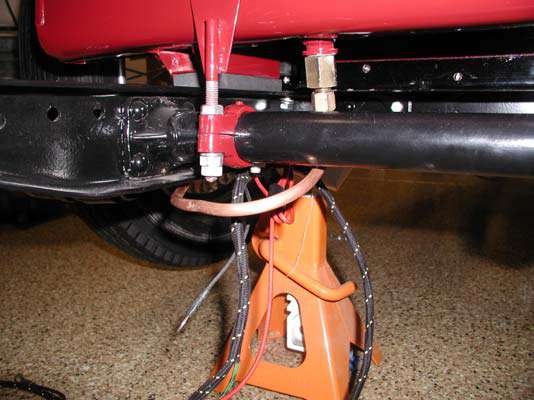

2- Be careful not to crimp fuel line when using jack

3 Original fuel line shows pitting from road debris

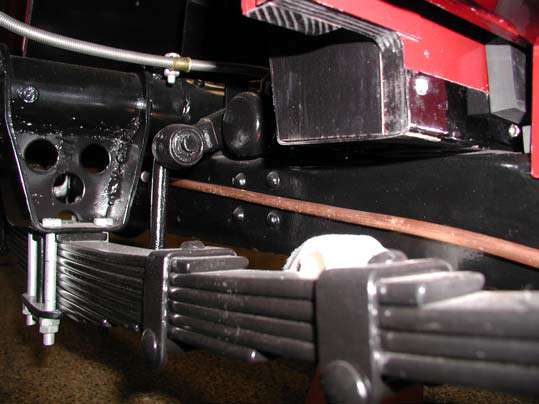

4 Routing under side curtain box

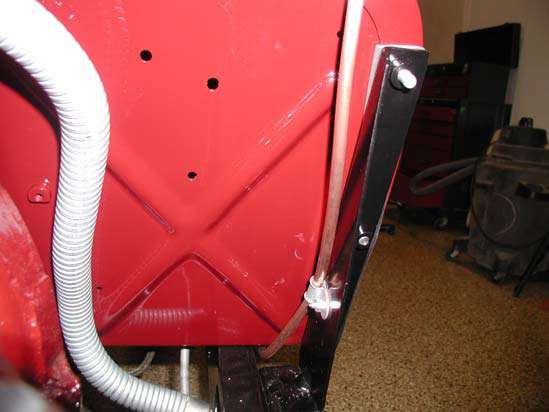

5 Routing along main frame

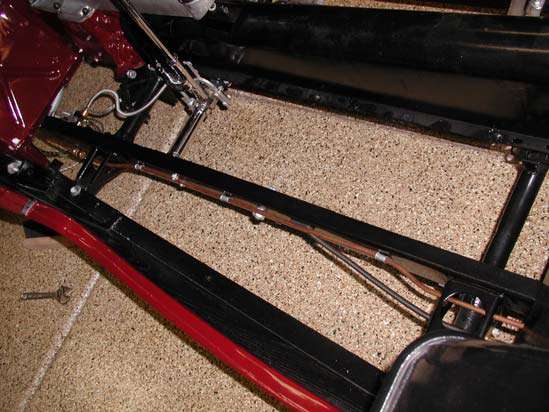

6 Total of 7 clips from tank to pump

7 Location of union for fuel line


8- All clips are held by 2BA setscrew

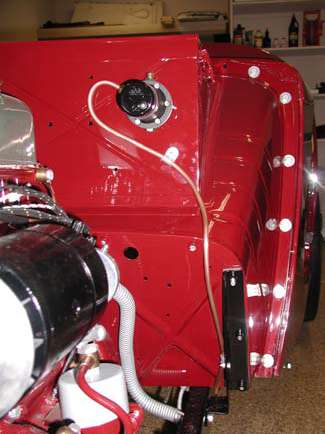

9 Final clip on battery box
