PART NO. SPL.PAGE DESCRIPTION
1H3084 15.F.1 Extension -gearbox -Changed to 1H3149 Com.(G)A101 -
Changed to 1H3273 Com.(E)GD101
1H3149 15.F.1 Extension -gearbox -Com.(G)A101 -(was 1H3084) -
Changed to 1H3273 Com.(E)GD101
1H3273 15.F.1 Extension -gearbox -Com.(E)GD101 -(was 1H3149)
1H3273 16.F.1 Extension -rear -(gearbox assy, 1600 and 1600-MK-II)
1H3273 TC.F.1 Extension -gearbox -(gearbox assembly, Twin Cam)
1G3418 15.F.1 20 Bush (gearbox rear, early and mid 1500) -Fin.(E)GB51767
6K529 15.F.1 24 Bearing -rear extension(gearbox) -Com.(E)GD101 (high starter 1500 on)
6K529 16.F.1 24 Bearing -rear extension -(gearbox assy, 1600 and 1600-MK-II)
6K529 TC.F.1 24 Bearing -rear extension -(gearbox assembly, Twin Cam)
11G3147 15.F.1 21 Oil seal assy (early 1500 gearbox) -Changed to 1H3339 Com.(G)A101
1H3339 15.F.1 22 Oil seal (internal mid 1500 gearbox) Com.(G)A101 (mid 1500)-
(Prev 11G3147 external) -changed again to 1H3275 Com.(E)GD101 (late 1500)
1H3275 15.F.1 23 Oil seal (internal late 1500 gearbox) Com.(E)GD101 (late 1500)
-(previously 1H3339)
1H3275 TC.F.1 23 Seal Oil seal -(rear extension, gearbox assembly, Twin Cam)
1H3275 16.F.1 23 Oil seal -rear extension -(internal, gearbox assy, 1600 and
1600-MK-II)
CCN240 15.F.1 25 Circlip -oil seal -(gearbox rear, GB assy, late 1500)
CCN240 16.F.1 25 Circlip -oil seal -(gearbox rear, GB assy, 1600 & 1600-MK-II)
CCN240 TC.F.1 25 Circlip -oil seal -(rear extension, gearbox assembly, Twin Cam)

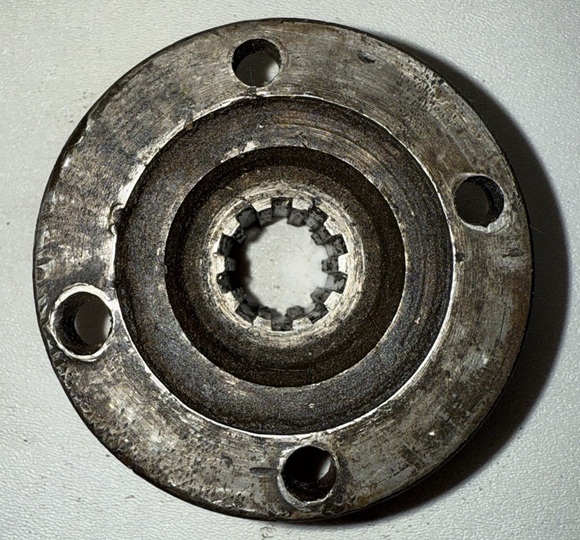

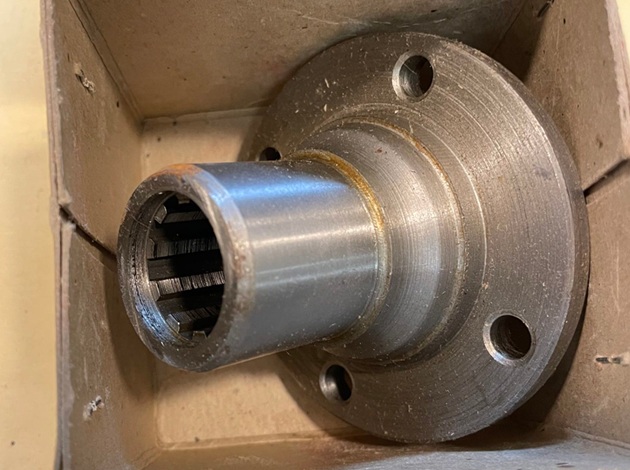

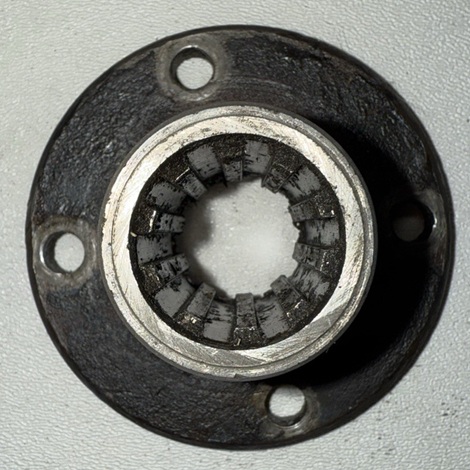

1H3304 15.F.3 26 Flange -3rd motion shaft -Com.(G)GD101 (gearbox, late 1500)
1H3304 16.F.2 26 Flange -3rd motion shaft -(gearbox, 1600 and 1600-MK-II)
1H3304 TC.F.3 26 Flange -3rd motion shaft -(gearbox, Twin Cam)
LWZ212 15.F.3 27 Lock washer (rear flange) -Com.(G)GD101 -(Prev. locktab 11G3226)
LWZ212 16.F.2 27 Washer -spring -nut -(3rd motion shaft flange, gearbox, 1600 and
1600-MK-II)
LWZ212 TC.F.3 27 Washer for nut (spring) -(flange, 3rd motion shaft, gearbox, Twin Cam)
FNZ612 15.H.2 28 Nut for flange (differential input, 1500)
FNZ612 16.F.2 28 Nut -3rd motion shaft flange -(gearbox, 1600 and 1600-MK-II)91240
FNZ612 TC.F.3 28 Nut for flange -(3rd motion shaft, gearbox, Twin Cam)


More information about this original type part, and some modern replacement type rubber lip seals, can be found in the gearbox tech article GT-111C
|
