MGA Part Numbers - 2H3271
Clip -ignition control pipe -Twin Cam

PART NO.  SPL.PAGE  DESCRIPTION
AEH589    TC.B.2    26 Pipe -ignition control -(vac.control, ignition, Twin Cam)-
    Fin.(E)2222 - no longer equired see service memorandum MG/301
2H3271    TC.B.2    27 Clip -(ign.ctrl.pipe, vac.control, ignition, Twin Cam) Fin.(E)2222-
    no longer required see service memorandum MG/301
    Twin Cam)
6K649     TC.B.2    28 Olive (2) -(ign.ctrl.pipe vacuum control, ignition, engine, Twin Cam)-
    Fin.(E)2222 -no longer required see service memorandum MG/301
2A459     TC.B.2    29 Nut carburetor end -(ign.ctrl.pipe, vac.control, ignition, Twin Cam)
    Fin.(E)2222 -no longer required see service memorandum MG/301
6K650     TC.B.2    30 Nut -distributor end -(ign.ctrl.pipe, vac.control, ignition, Twin Cam)-
    Fin.(E)2222 -no longer required see service memorandum MG/301
PCR0811   TC.B.2    31 Clip for pipe (fuel tap) -(ign.ctrl.pipe, vac.control, ignition, Twin
    Cam) -Fin.(E)2222 -no longer required see service memorandum MG/301

P-clip for MGA Twin Cam ignition control pipe

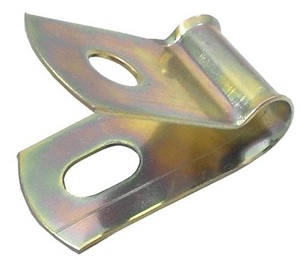

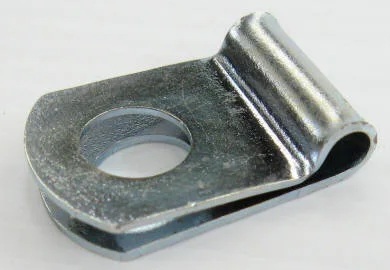

2H3271 Clip is the small P-clip (item 27) used to secure the ignition vacuum pipe to the engine front plate. The original part (at left) was a straight edge P-clip. The picture at rightt is a PCR type P-clip with rolled edges, which can be a good substitute for the original part number.
MGA Twin Cam ignition control pipe ass'y

MGA Twin Cam ignition control pipe ass'y
