MGA Part Numbers - AEH589
Pipe -ignition control -Twin Cam

PART NO.  SPL.PAGE  DESCRIPTION
AEH589    TC.B.2    26 Pipe -ignition control -(vac.control, ignition, Twin Cam)-
    Fin.(E)2222 - no longer equired see service memorandum MG/301
2H3271    TC.B.2    27 Clip -(ign.ctrl.pipe, vac.control, ignition, Twin Cam) Fin.(E)2222-
    no longer required see service memorandum MG/301
    Twin Cam)
6K649     TC.B.2    28 Olive (2) -(ign.ctrl.pipe vacuum control, ignition, engine, Twin Cam)-
    Fin.(E)2222 -no longer required see service memorandum MG/301
2A459     TC.B.2    29 Nut carburetor end -(ign.ctrl.pipe, vac.control, ignition, Twin Cam)
    Fin.(E)2222 -no longer required see service memorandum MG/301
6K650     TC.B.2    30 Nut -distributor end -(ign.ctrl.pipe, vac.control, ignition, Twin Cam)-
    Fin.(E)2222 -no longer required see service memorandum MG/301
PCR0811   TC.B.2    31 Clip for pipe (fuel tap) -(ign.ctrl.pipe, vac.control, ignition, Twin
    Cam) -Fin.(E)2222 -no longer required see service memorandum MG/301

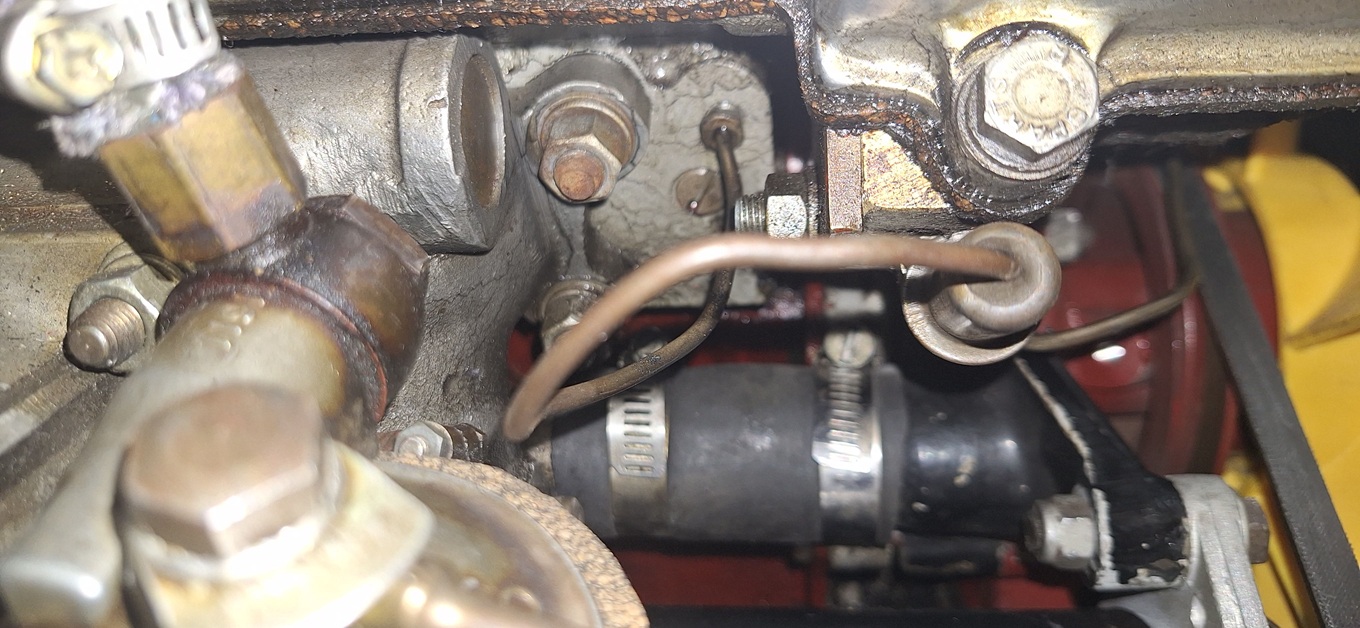

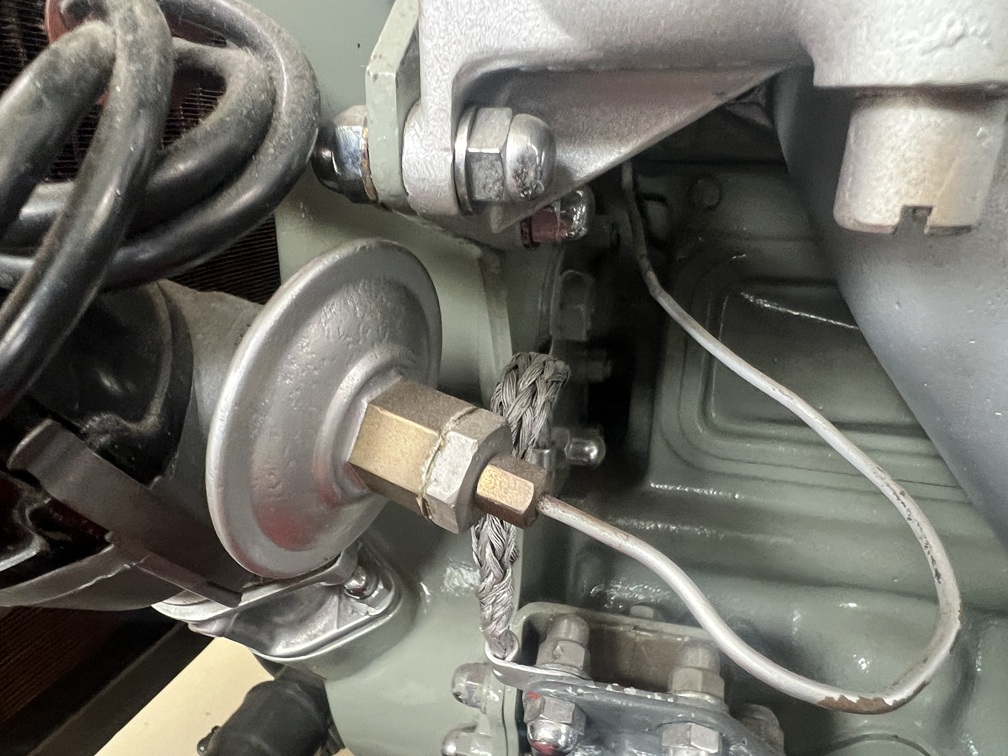

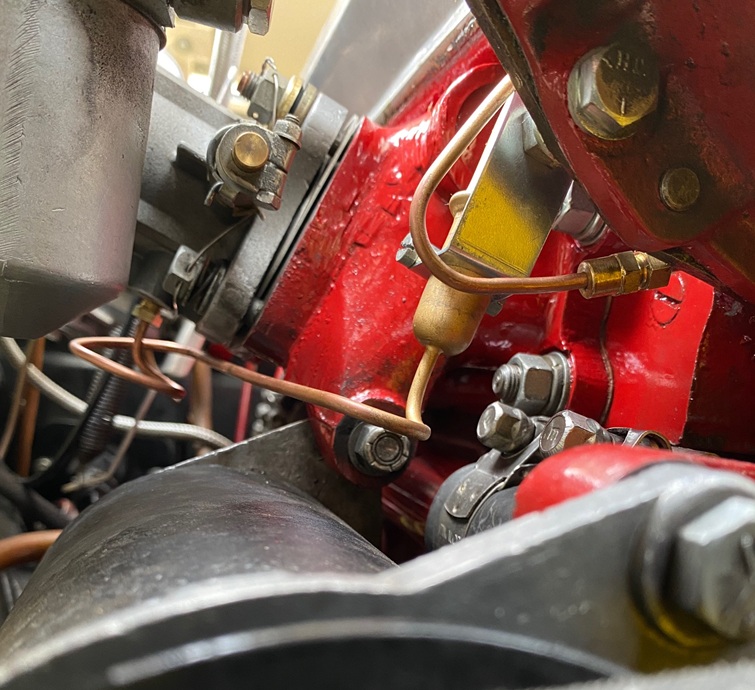

AEH589 Vacuum pipe for ignition control, and the vacuum controlled distributor, were used for early production MGA Twin Cam cars. Later production changed to a non-vacuum distributor, and the vacuum pipe assembly and associated parts were deleted. -- The drawing below is for parts identification only, and does not show final position and routing path of the vacuum pipe. Need more pictures for that.

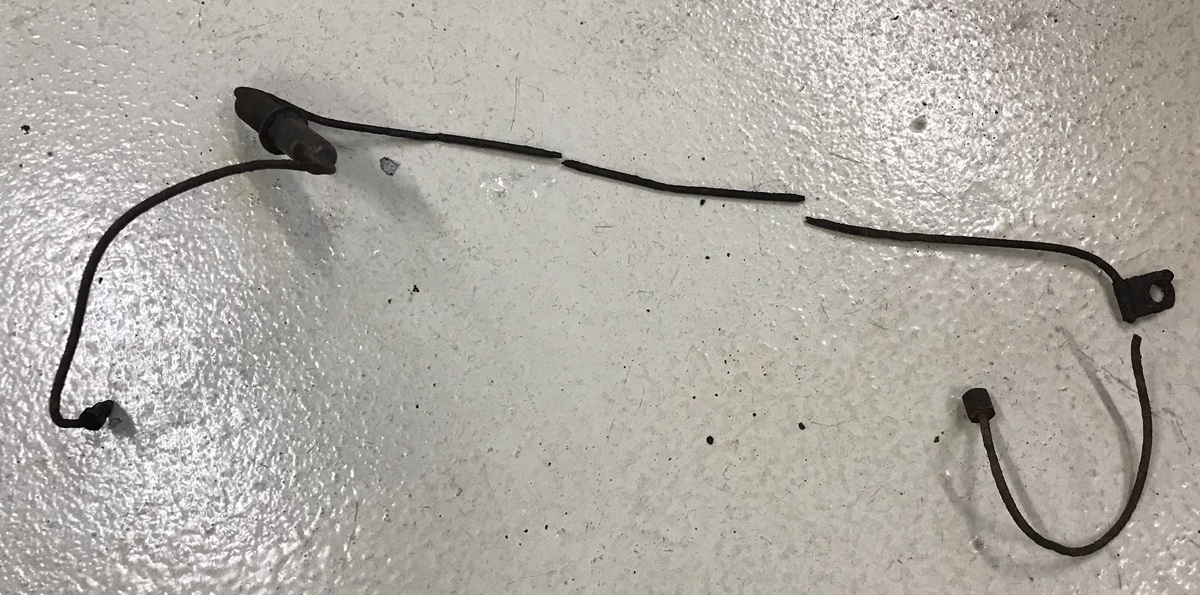

MGA Twin Cam ignition control pipe ass'y
